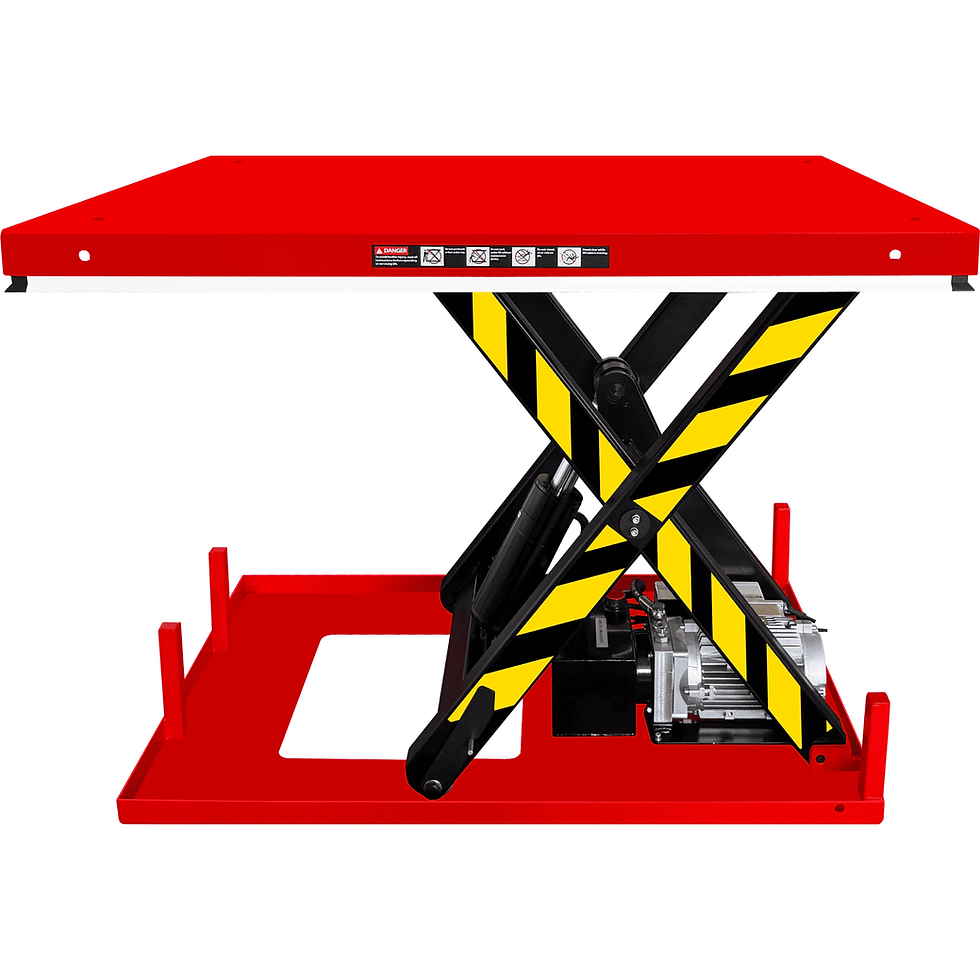

The Pake Handling Tools electric hydraulic scissor lift table with hand control is a cost effective solution for helping to reduce worker strain in the warehouse. The lift table is designed to promote employee safety by lifting loads to a comfortable working height. The lift comes with thicker and wider than average scissors to support heavy-duty use. Hand-held push button pendant control with an 8 foot cord and an additional Foot Control comes with the lift. Powerful 110V 1-phase motor and pump assembly offer years of easy functionality. Captured rollers reduce the risk of injury. Chip -resistant powder coat finish. 1-Year Limited Warranty.

Features About This Item
1. Hydraulic scissor lift table with electric motor for lifting and lowering heavy materials
2. Red powder-coated steel frame for resistance to wear and corrosion
3. 2,200 lb. load capacity with 48" x 36" platform
4. Service range of 9.5" to 36.25"
5. Canadian CAS certified motor, Phase 1, Duty S1 (CONT Continuous Duty), 2 HP, 110 V, 60 Hz
6. Hand control with an 8 foot cord and aviation plug comes standard. Foot Pedal Control included (Optional Wireless Control Can Be Ordered From Our Factory)
7. Four-sided electric toe-guard is designed to promote employee safety
8. Build-in electric toe-guard wire is designed to prevent cut during operation
9. Hydraulic pump station contains a fan and a temperature sensor controller to improve stability
10. Mechanical explosion-proof hydraulic Cylinder (Electromagnetic Explosion-Proof Cylinder Can Be Ordered From Our Factory)
11. All electrical equipment's enclosure rating is higher than IP54
12. The bending steel base instead of welding provides reliable heavy-duty user
13. The lift comes with scissors which is thicker and wider than average to support loads


Product Details
Load Capacity
2,200 lb
Lift Mechanism
Hydraulic
Phase
1
Platform Length
48 in
Platform Width
36 in
Lift Table Platform Style
Fixed
Lift Voltage
110V
Up Speed Seconds
20～25
Frame Material
Steel
HP
2
Includes
Control Cord; Foot Control; Hand Control;Molded Edge Platform; Power Cord
Lifting Height Max.
36.25 in
Lifting Height Min.
9.5 in
Country of Origin
China
